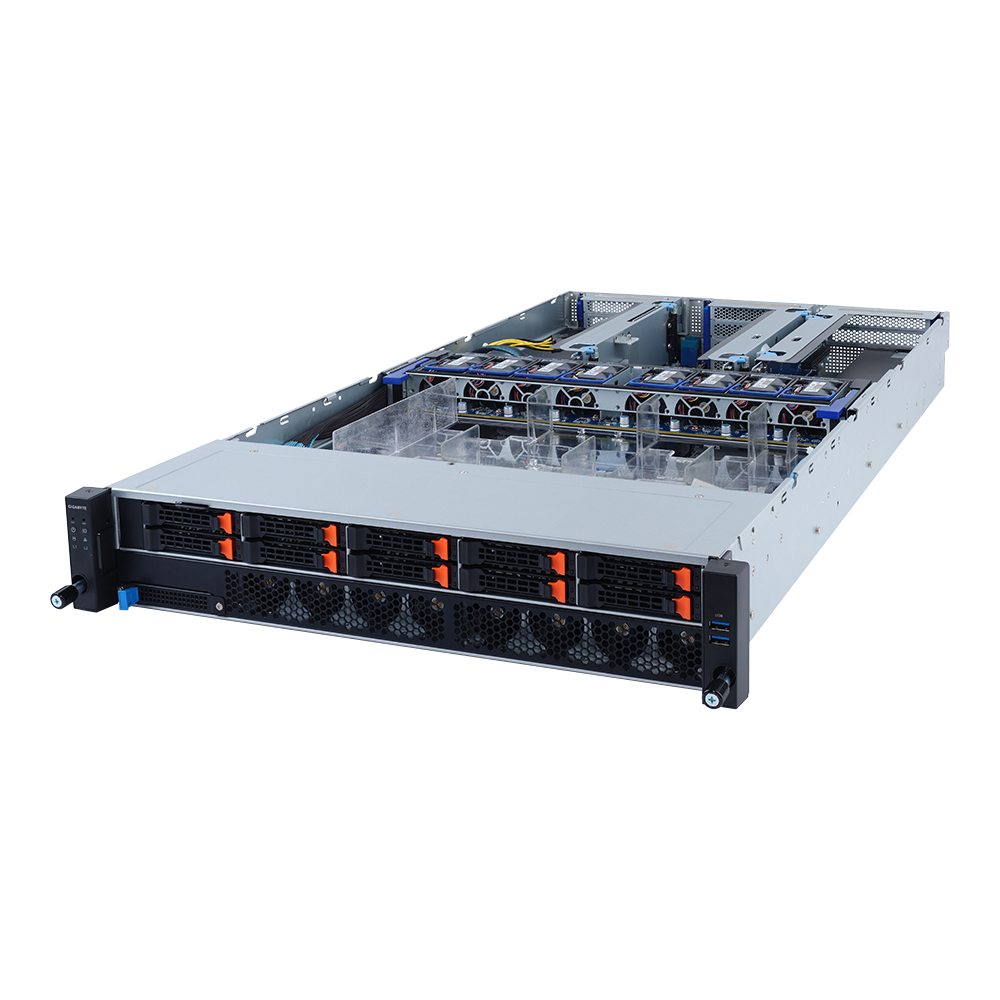

R292-4S1 (rev. 100)

製品種別 サーバ
CPU
筐体サイズ 2U
電源仕様 リダンダント電源
用途/特長
製品説明

製品仕様

Dimensions (WxHxD, mm) 2U
438 x 87.5 x 858
Motherboard MRQ2-4S0
CPU 3rd Generation Intel® Xeon® Scalable Processors

Intel® Xeon® Platinum 8300 Processors, Intel® Xeon® Gold 6300 Processors
6 UPI Links per processor
TDP up to 250W
Socket 4 x LGA 4189
Socket P5
Chipset Intel® C621A Express Chipset
Memory Total 48 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ Persistent Memory 200 series
1.2V modules: 3200 (1DPC)/2933 (2DPC) MHz
LAN 2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio -
Storage 10 x 2.5" NVMe/ SAS/ SATA hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
SATA Supported
SAS Supported via add-on SAS Card
RAID Intel® SATA RAID 0/1/10/5
Peripheral Drives -
Expansion Slots Total 8 x PCIe x16 slots

Riser Card CRS202A:
- 2 x PCIe x16 slot ( Gen3 x16), FHHL

Riser Card CRS2040:
- 4 x PCIe x16 slot ( Gen3 x16), FHHL

Riser Card CRS2029:
- 2 x PCIe x16 slot ( Gen3 x16), FHHL

1 x OCP3.0 mezzanine slot
- PCIe Gen3 x16
- Supports OCP3.0 SFF standard

1 x M.2 slot:
- M-key
- PCIe Gen3 x2
- Supports NGFF-2280 cards
Internal I/O 10 x SlimSAS 8i connectors (Gen3 x8)
1 x M.2 slot
Front I/O 1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O 2 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O CBP10A5: 10 x NVMe/ SAS/ SATA hybrid ports
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply 2 x 3200W redundant PSUs
80 PLUS Platinum

Input:
100-127V~/ 14A
180-219V~/ 16A
220-239V~/ 16A
240-264V~/ 16A 50/ 60Hz or 240V 16A
Output:
1100W@100-127V
2434W@180-219V
3111W@220-239V
3234W@240-264V

NOTE: The system power supply requires C19 type power cord
System Management Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Hardware information
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Fan profiles
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (HTML5)
OS Compatibility Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 18.04 LTS (x64) or later

VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Weight TBD
System Fans 16 x 40x40x56mm (TBDrpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions TBD
Packaging Content 1 x R292-4S1
4 x CPU heatsinks
1 x Rail kit
Part Numbers Barebone package: 6NR2924S1MR-00
Part Numbers:
- Motherboard: 9MRQ24S0NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: TBD
- M.2 heatsink: 12SP2-080027-00R
- Back plane board_10-port: 9CBP10A5NR-00
- Front panel board: 9CFP2001NR-00
- Power supply: 25EP0-232000-D0S
- Riser card - CRS202A: 9CRS202ANR-00
- Riser card - CRS2040: 9CRS2040NR-00
- Riser card - CRS2029: 9CRS2029NR-00
